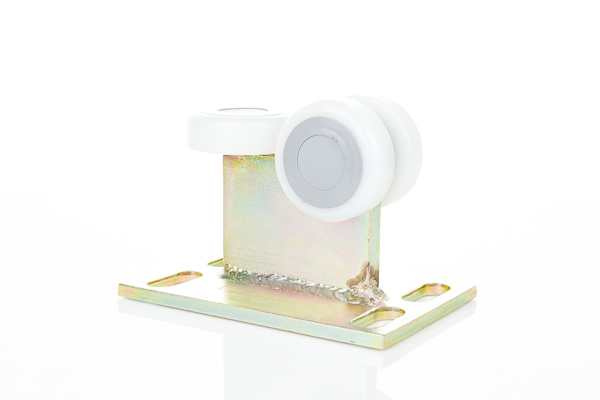

Steady carriage W-07/M

A carriage designed for self-supporting sliding gates. Used for various gate profiles and semi-closed C-sections. The gate carriages are galvanized and reinforced with yellow CR VI zinc, making them more durable and corrosion-resistant. The galvanic layer is approximately 8-12 um thick.

The sliding carriages have polyamide rollers or metal rollers.

Advantages of the polyamide roller with bearings:

• They are manufactured using the injection method, which guarantees high resistance to abrasion and cracking.
• They reduce the noise level when moving the gate.
• Abrasion is lower than with steel rollers.
• The metal profile of the gate is not subject to abrasion.
• High resistance to changing weather conditions.

Carriage installation:
We install the carriages at the end of the gate in the so-called counterweight. It is assumed that the counterweight length is 1/3 of the clear gate length or in gates longer than 8 m approx. ½ of the clear gate length. The carriage's assembling plate has four elongated holes - so-called beans, where it is attached to the ground using an anchor or threaded rods. The maximum diameter of the bars is M16, and the recommended diameter is M14.

Steady 3-roller carriage:
Steady 3-roller carriages are used for short and light gate designs. The main advantage is the lack of wedging of the carriage in the running profile.

Gate load capacity: 180 kg.
Gate length in clear: 3–4 m.
Assembling plate: TYPE „A” - standard.
